Insulated panels
CR-NI 304 / CR-NI 304 panel
PUR core. POLY is a facing name, not the foam. Width and length are from the source table. No fire rating or load figure is stated here.
Description
PUR core. POLY is a facing name, not the foam. Width and length are from the source table. No fire rating or load figure is stated here.
Specifications
| Inner face | CR-NI 304 |
|---|---|
| Outer face | CR-NI 304 |
| Use | Wall or ceiling panel |
| Width | 1110 mm |
| Length | 1 m–13.5 m |
| Core | CFC-free PUR foam, 42 kg/m³ |
| Material | The illustration calls out 0.5 mm CR-NI 304 trapezoidal sheet. |
| Thickness | 60 / 80 / 100 / 120 / 150 / 200 mm |
Thickness
| 60 mm | No lock |
|---|---|
| 80 mm | With lock |
| 100 mm | With lock |
| 120 mm | With lock |
| 150 mm | With lock |
| 200 mm | With lock |

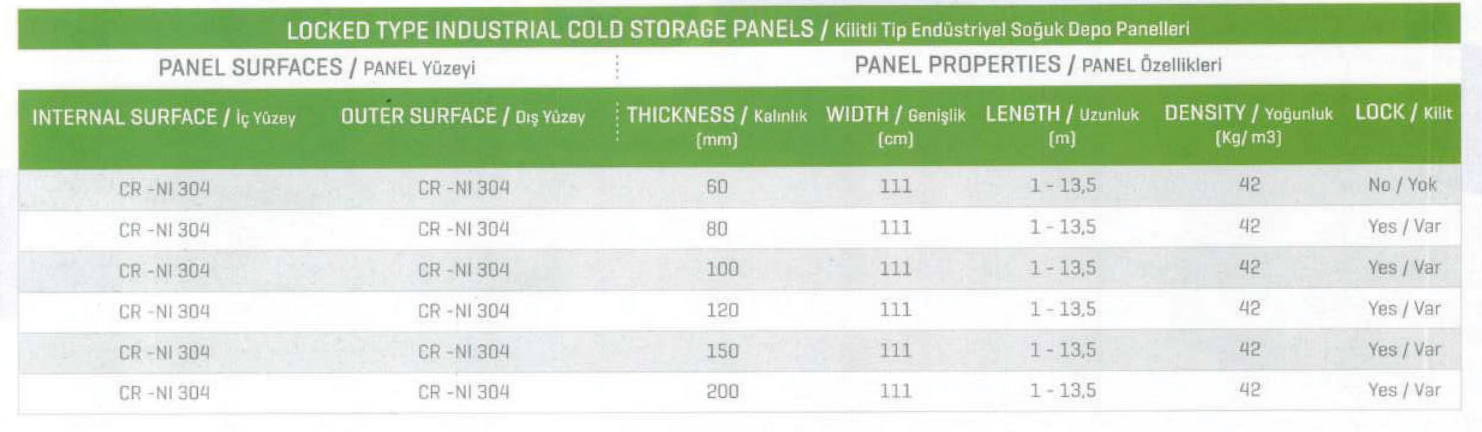

Catalog tables
Printed source table for this panel family.
